MEP-MP8 Micro Power 8-Port Effects Pedal Power Supply

The Mooer MEP-MP8 Micro Power is a pedal power supply unit featuring eight output power jacks.

Equipped with various functions including an input voltage switch, independent output power jacks, over-current protection, and adjustable output, it’s designed to cater to diverse user needs while ensuring convenience and reliability.

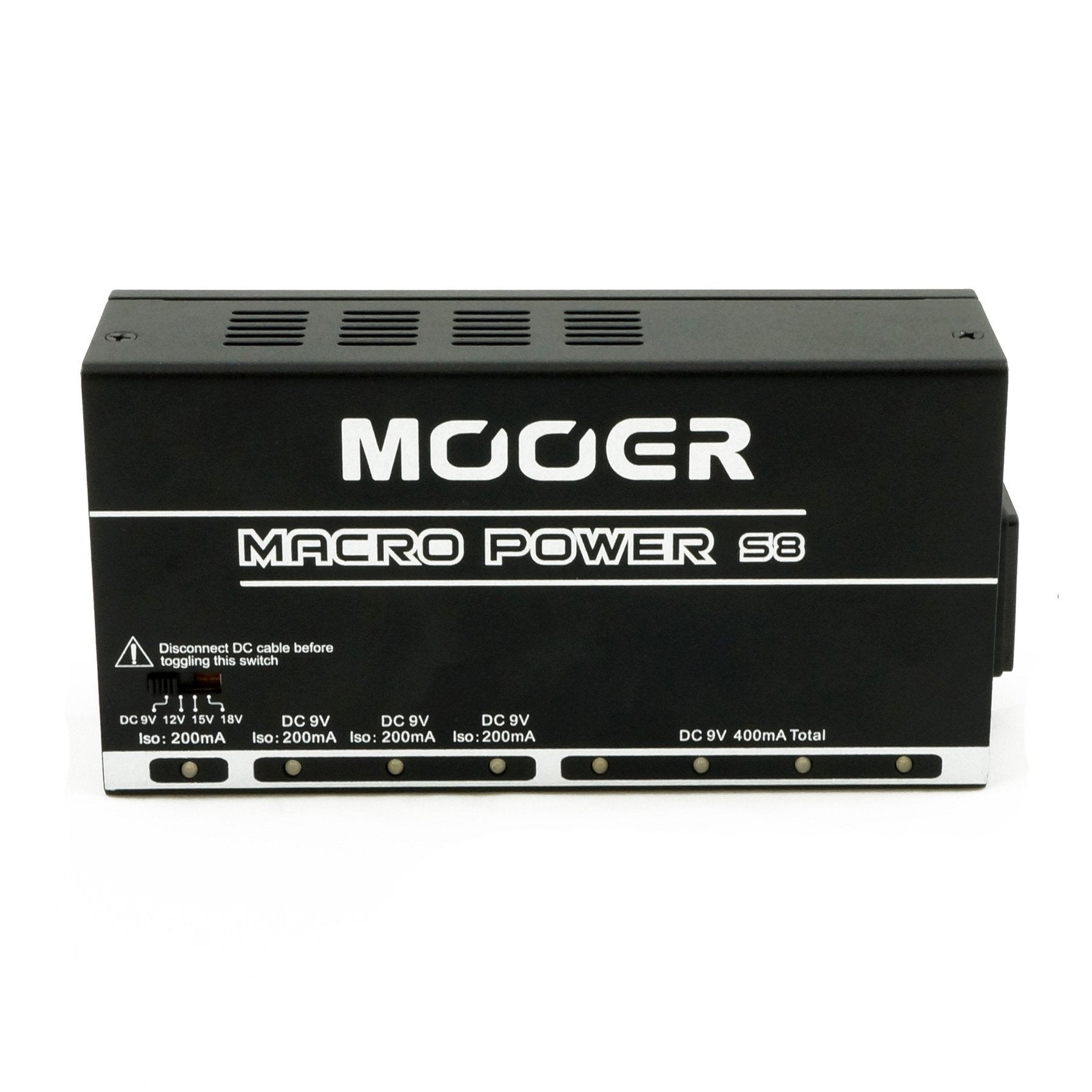

Here’s a breakdown of the output power jacks from left to right:

• One adjustable voltage output power jack with options for 9V, 12V, 15V, or 18V. The output current is 200mA.
• Three independent output power jacks, each providing 9V output with a current of 200mA.
• Four parallel output power jacks, each supplying 9V output. These four lines can be paralleled into an independent output power jack, supporting a total power supply of 400mA.

Features:

• Input voltage switch: Allows selection between 110V120V and 220V240V to accommodate different country requirements. Includes specific fuses for each voltage setting.
• Independent power supply jacks: Eight power supply jacks, with five functioning completely independently to avoid interference between pedals. If one power supply is down, the other output lines can still operate independently.
• Adjustable output power jack: The first output power jack offers voltage options of 9V, 12V, 15V, and 18V to meet the needs of various pedals.
• LED power status indicators: Eight blue LED lights indicate the power supply status, providing clear visibility of the power supply status.
• Over-current protection function: Each independent output power supply line features over-current protection to prevent damage in case the pedal power exceeds the output of the power supply. If the LED light is not on after connecting the pedal to the power supply, it indicates a possible over-current situation.

Specifications:

• Power supply: 230V (220V-240V) OR 115V (110V-120V)
• Output voltage: Four independent 9V output power lines. One adjustable output power line (9V, 12V, 15V, 18V) (centre negative plug)
• Current Draw: Each output line independently outputs 200mA. The combined output of the other four lines should not exceed 400mA in total.
• Dimensions: 165mm (D) × 83mm (W) × 52mm (H)
• Weight: 1.12kg
